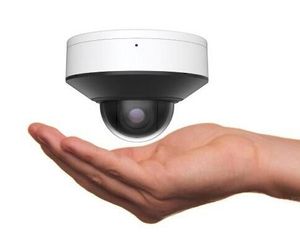

Tiny PTZ That Fits In The Palm Of Your Hand!!
Features
Up to 2688x1520 resolution
Minimum illumination:
Color: 0.02 lux @ (F1.6 AGC ON)
3x optical zoom, fast and accurate
Pan 80°/S , Tilt80°/S
Smart IR
Built-in Mic
Smart H.265+/H.265/H.264+/H.264
AI-based face, human, vehicle detection and recognition
Smart-tracking, perimeter precaution, line crossing, etc.
Micro SD card chamber, Reset button, Alarm in/out
PoE and DC12V power supply, easy connection
IP67
IK10 Vandal Resistant Housing
ONVIF, API, SDK, IE/NVR/VMS/free mobile Apps
| AES | BLC, HLC, DWDR(suggest in still mode) |
| Alarm Inputs / Relay Outputs | 1CH alarm input(DRY Connection); 1CH alarm output |
| DNR | Auto/Manual |
| Dimensions | ￠116mm x 75mmH (￠4.56′x 2.95′)，Approx. 463g( 1 lb.) |
| Image Sensor (CCD) | 1/2.7″ progressive scan CMOS with BSI and NIR+ technology |
| Lens | f=3.18mm~7.42mm(wide-tele) ±5%, about 3x optical zoom AF lens |
| Minimum Illumination - Colour | 0.02 Lux @ (F1.6,AGC ON)； |
| Minimum Illumination - Mono | 0.004 Lux @(F1.6，AGC ON); 0 Lux with IR |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) IR off, -30°C ~ 40°C IR on; Cold start≥- 20°C(1Hour waiting), ≤90%RH |
| Power | DC12V±20% 2000mA or PoE(802.3.af). avg 7Watt;max 12Watt (IR + PTZ working) |
| Presets | 360 |
| Privacy | 4 Programmable privacy masks |
| Resolution (Best) | 2688x1520(4.08MP) |
| S/N Ratio | ≥52dB |
| Shutter | 50Hz: 1/25s~1/25,000s, 60Hz: 1/30s~1/30,000s |
| Storage Media & Capacity | Card chamber, support microSD/TF card, up to 256GB |
| Weight(Cameras) | Approx. 463g( 1 lb.) |
| Zoom | 8X |
Reviews
Product

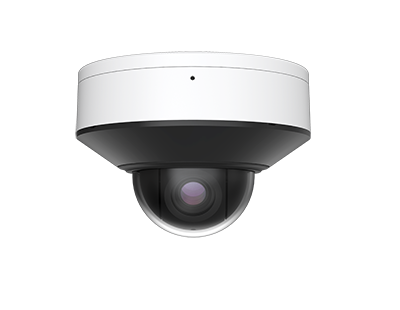

TD-8140IEN - Miniature 4MP IR PTZ Camera with Auto-Tracking
Tiny PTZ That Fits In The Palm Of Your Hand!!
Features
Up to 2688x1520 resolution
Minimum illumination:
Color: 0.02 lux @ (F1.6 AGC ON)
3x optical zoom, fast and accurate
Pan 80°/S , Tilt80°/S
Smart IR
Built-in Mic
Smart H.265+/H.265/H.264+/H.264
AI-based face, human, vehicle detection and recognition
Smart-tracking, perimeter precaution, line crossing, etc.
Micro SD card chamber, Reset button, Alarm in/out
PoE and DC12V power supply, easy connection
IP67
IK10 Vandal Resistant Housing
ONVIF, API, SDK, IE/NVR/VMS/free mobile Apps
Details
Additional Information
| AES | BLC, HLC, DWDR(suggest in still mode) |
| Alarm Inputs / Relay Outputs | 1CH alarm input(DRY Connection); 1CH alarm output |
| DNR | Auto/Manual |
| Dimensions | ￠116mm x 75mmH (￠4.56′x 2.95′)，Approx. 463g( 1 lb.) |
| Image Sensor (CCD) | 1/2.7″ progressive scan CMOS with BSI and NIR+ technology |
| Lens | f=3.18mm~7.42mm(wide-tele) ±5%, about 3x optical zoom AF lens |
| Minimum Illumination - Colour | 0.02 Lux @ (F1.6,AGC ON)； |
| Minimum Illumination - Mono | 0.004 Lux @(F1.6，AGC ON); 0 Lux with IR |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) IR off, -30°C ~ 40°C IR on; Cold start≥- 20°C(1Hour waiting), ≤90%RH |
| Power | DC12V±20% 2000mA or PoE(802.3.af). avg 7Watt;max 12Watt (IR + PTZ working) |
| Presets | 360 |
| Privacy | 4 Programmable privacy masks |
| Resolution (Best) | 2688x1520(4.08MP) |
| S/N Ratio | ≥52dB |
| Shutter | 50Hz: 1/25s~1/25,000s, 60Hz: 1/30s~1/30,000s |
| Storage Media & Capacity | Card chamber, support microSD/TF card, up to 256GB |
| Weight(Cameras) | Approx. 463g( 1 lb.) |
| Zoom | 8X |
