Features
1080P real-time image, high resolution, true color
AHD / TVI / CVI /CVBS standard and lossless video output
Up to 1000 TVL resolution
CMOS progressive scan, perfectly capture the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night, digital WDR
Support noise reduction function
30 ~ 50m IR night view distance
IP67
Support COC
AES | Yes |
AGC | Auto |
Aperture Correction | H aperture V aperture |
BLC | Yes |
BLC/SSDR (WDR) | Digital WDR |
Connection Cable | DC + 12v |
DNR | 3D |
Dimensions | Φ109mm×130mm |
Dual Streaming | Yes |
Gamma Correction | 0.45 |
Image Sensor (CCD) | 1/3" 5MP |
Lens | 2.8-12mm Megapixel Day / Night Lens |
Lens Facilities | Auto Zoom, Manual Focus |
Minimum Illumination - Colour | 0.01 Lux |
Minimum Illumination - Mono | 0 Lux with IR LED's on + Smart IR |
Power Source | 12V DC Regulated |
S/N Ratio | >52db + |
Scanning System | PAL |
Shutter | 1/50s~1/50000s |
Sync System | 2:1 Internal |
Sync. Type | Internal |
Video Output Signal | 1.0vp-p, 75 ohm composite |
Video output | BNC |
Within Range of IR LEDs | 30m |
Zoom | Yes |
Reviews
Product

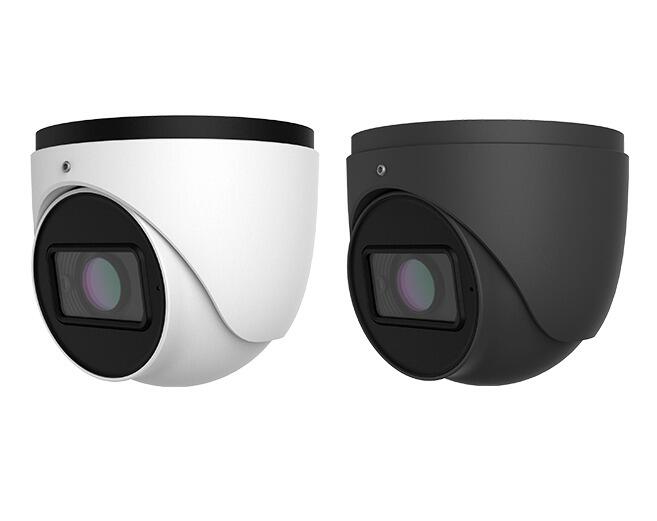

FV-PRO AH7525 - 2 Megapixel 2.8-12mm Varifocal Eyeball Dome
Features
1080P real-time image, high resolution, true color
AHD / TVI / CVI /CVBS standard and lossless video output
Up to 1000 TVL resolution
CMOS progressive scan, perfectly capture the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night, digital WDR
Support noise reduction function
30 ~ 50m IR night view distance
IP67
Support COC
Details
Additional Information
AES | Yes |
AGC | Auto |
Aperture Correction | H aperture V aperture |
BLC | Yes |
BLC/SSDR (WDR) | Digital WDR |
Connection Cable | DC + 12v |
DNR | 3D |
Dimensions | Φ109mm×130mm |
Dual Streaming | Yes |
Gamma Correction | 0.45 |
Image Sensor (CCD) | 1/3" 5MP |
Lens | 2.8-12mm Megapixel Day / Night Lens |
Lens Facilities | Auto Zoom, Manual Focus |
Minimum Illumination - Colour | 0.01 Lux |
Minimum Illumination - Mono | 0 Lux with IR LED's on + Smart IR |
Power Source | 12V DC Regulated |
S/N Ratio | >52db + |
Scanning System | PAL |
Shutter | 1/50s~1/50000s |
Sync System | 2:1 Internal |
Sync. Type | Internal |
Video Output Signal | 1.0vp-p, 75 ohm composite |
Video output | BNC |
Within Range of IR LEDs | 30m |
Zoom | Yes |
