-Enhanced Low Light Miniature B&W. Weather Resistant IP66 rated Housing. Sony 1/3" Exview HAD technology. This model offers a choice of lens viewing angles and a Mounting Bracket. It is a superb Night Viewing Tool for indoors or external use whilst still offering clear and well defined Daytime Observation.
Key Features.
- Mounting Bracket included.
- 5m Integrated Video and Power cable.
- Choice of 3mm / 4.3mm / 6mm / 8mm / 12mm or 16mm lens.
- Auto Electronic Shutter.
- Composite Video Output.
- 12V DC Regulated Power.
| AES | 1/50~1/100,000 |
| AGC | Auto |
| BLC | Auto |
| Connection Cable | 5m BNC + DC (integral) |
| Dimensions | 50mm(L) x 30(D)mm |
| Gamma Correction | 0.45 |
| Horizontal Resolution | 400 + TV lines |
| Image Sensor (CCD) | 1/3" Sony Exwave HAD (Exview) |
| Lens | Fixed Iris choice of 3 / 4 / 6 / 8 / 12 / 16mm |
| Minimum Illumination - Mono | 0.003 lux @ f2.0 |
| Power Consumption | 400mA max |
| Power Source | 12V DC Regulated |
| S/N Ratio | 48db + |
| Scanning System | CCIR |
| Sync System | 2:1 internal |
| Video Output Signal | 1.0vp-p, 75 ohms negative |
| Weight(Cameras) | 350g |
| Within Range of IR LEDs | 0.000 lux |
Reviews
Product

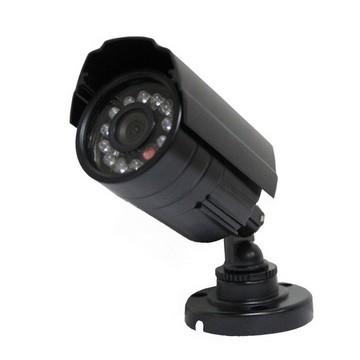

TOC360 - Miniature B&W Infrared LED Enhanced Low Light Bullet Camera with a choice of Lenses
-Enhanced Low Light Miniature B&W. Weather Resistant IP66 rated Housing. Sony 1/3" Exview HAD technology. This model offers a choice of lens viewing angles and a Mounting Bracket. It is a superb Night Viewing Tool for indoors or external use whilst still offering clear and well defined Daytime Observation.
Key Features.
- Mounting Bracket included.
- 5m Integrated Video and Power cable.
- Choice of 3mm / 4.3mm / 6mm / 8mm / 12mm or 16mm lens.
- Auto Electronic Shutter.
- Composite Video Output.
- 12V DC Regulated Power.
Details
Miniature External or Internal Enhanced low light B&W bullet style camera with IR LED illumination.
Additional Information
| AES | 1/50~1/100,000 |
| AGC | Auto |
| BLC | Auto |
| Connection Cable | 5m BNC + DC (integral) |
| Dimensions | 50mm(L) x 30(D)mm |
| Gamma Correction | 0.45 |
| Horizontal Resolution | 400 + TV lines |
| Image Sensor (CCD) | 1/3" Sony Exwave HAD (Exview) |
| Lens | Fixed Iris choice of 3 / 4 / 6 / 8 / 12 / 16mm |
| Minimum Illumination - Mono | 0.003 lux @ f2.0 |
| Power Consumption | 400mA max |
| Power Source | 12V DC Regulated |
| S/N Ratio | 48db + |
| Scanning System | CCIR |
| Sync System | 2:1 internal |
| Video Output Signal | 1.0vp-p, 75 ohms negative |
| Weight(Cameras) | 350g |
| Within Range of IR LEDs | 0.000 lux |
