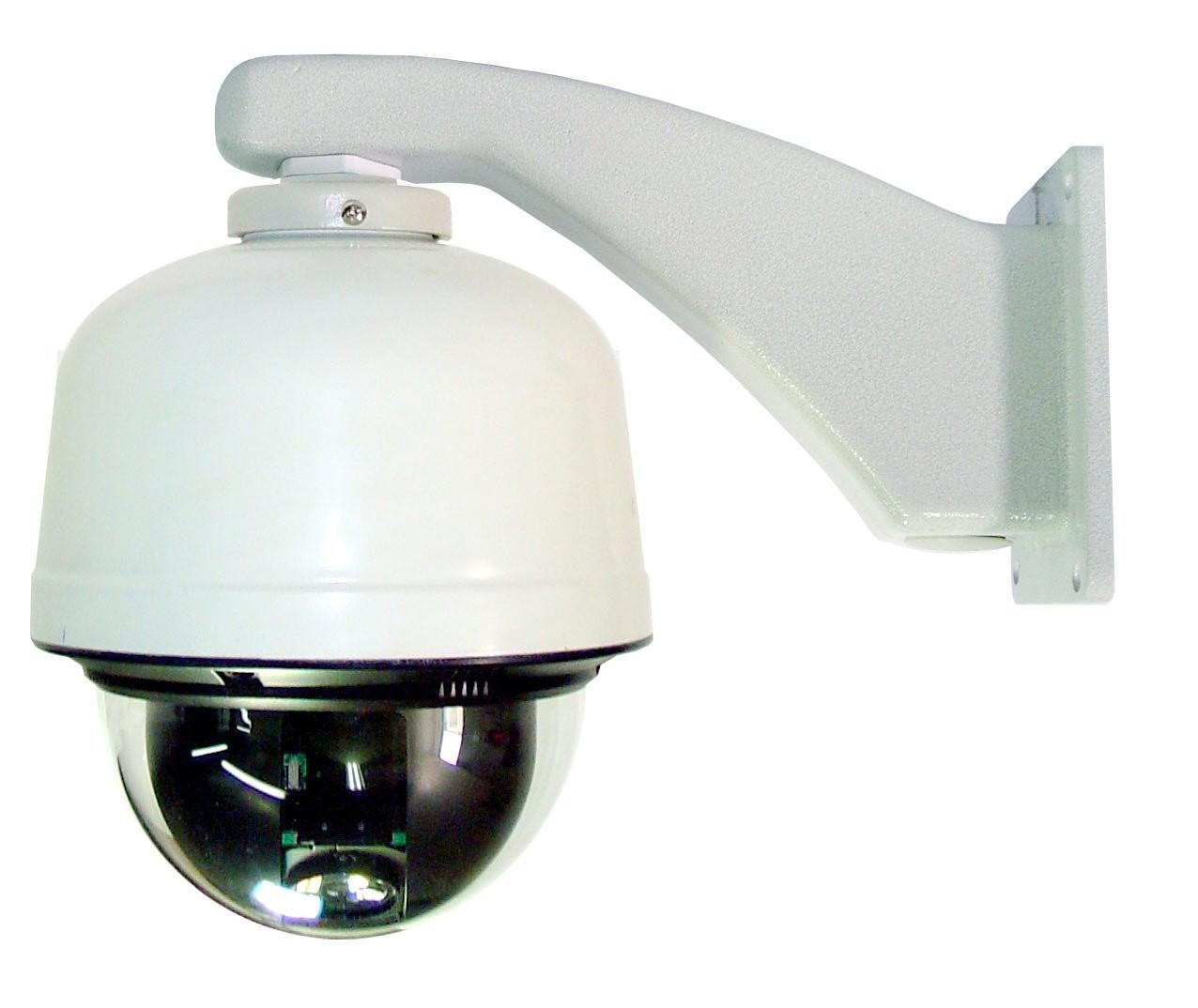

HSD2000 - High Res 22x Optical + Digi Internal Speed Dome

Please login for pricing or apply for an account

Availability: Reward Points:

This Dome offers the user Fast Panning Speeds and virtually every function needed for all round Controlled Observation. Each Dome will scan a 350 degree Horizontal and 90 degree Vertical area.

Key Features:

  • Sony 480TVL High Resolution.
  • 22x Optical Zoom plus 10x Digital Lens.
  • Full Manual Control.
  • Day / Night Filter Switching to enhance low light viewing.
  • Supplied complete with Ceiling Mount and Power Supply.
  • Anti Vandal Polycarbonate Dome Cover.
AES 1/50~1/10000 - 28 steps
AGC Auto or Manual setting
BLC Auto /On /Off
Communication System RS485 / 422
Control Capability RS485
Dimensions 189(D) x 224(H)mm
Gamma Correction 0.45
Horizontal Resolution 480 + TV lines
Image Sensor (CCD) 1/4" Sony High Res Super HAD
Lens (Digital) 10x (85.8~858mm)
Lens (Optical) 22x (3.9~85.8mm)
Minimum Illumination - Colour 1 lux @ f1.6
Minimum Illumination - Mono 0.01 lux @ f1.6 DSS
Model HSD-2000SPH Internal Speed Dome
Power Consumption 18w max
Power Source 24V AC - Supplied
Presets 64
S/N Ratio 48db +
Scanning System PAL 2:1 interlace
Sync System 2:1 internal
Video Output Signal 1.0vp-p, 75 ohms negative
Weight(Cameras) 3.2kg

Reviews

Be the first to leave a review for this product.

Product

HSD2000 - High Res 22x Optical + Digi Internal Speed Dome

This Dome offers the user Fast Panning Speeds and virtually every function needed for all round Controlled Observation. Each Dome will scan a 350 degree Horizontal and 90 degree Vertical area.

Key Features:

  • Sony 480TVL High Resolution.
  • 22x Optical Zoom plus 10x Digital Lens.
  • Full Manual Control.
  • Day / Night Filter Switching to enhance low light viewing.
  • Supplied complete with Ceiling Mount and Power Supply.
  • Anti Vandal Polycarbonate Dome Cover.

Details

This Dome offers the user Fast Panning Speeds and virtually every function needed for all round Controlled Observation. Each Dome will scan a 350 Horizontal and 90 Vertical area. A superb 22x Lens ranging from wide angle to telephoto is used with an additional close up facility of 10x digital. The Dome is supplied with a Ceiling Mount and a Power Supply.

Additional Information

AES 1/50~1/10000 - 28 steps
AGC Auto or Manual setting
BLC Auto /On /Off
Communication System RS485 / 422
Control Capability RS485
Dimensions 189(D) x 224(H)mm
Gamma Correction 0.45
Horizontal Resolution 480 + TV lines
Image Sensor (CCD) 1/4" Sony High Res Super HAD
Lens (Digital) 10x (85.8~858mm)
Lens (Optical) 22x (3.9~85.8mm)
Minimum Illumination - Colour 1 lux @ f1.6
Minimum Illumination - Mono 0.01 lux @ f1.6 DSS
Model HSD-2000SPH Internal Speed Dome
Power Consumption 18w max
Power Source 24V AC - Supplied
Presets 64
S/N Ratio 48db +
Scanning System PAL 2:1 interlace
Sync System 2:1 internal
Video Output Signal 1.0vp-p, 75 ohms negative
Weight(Cameras) 3.2kg
